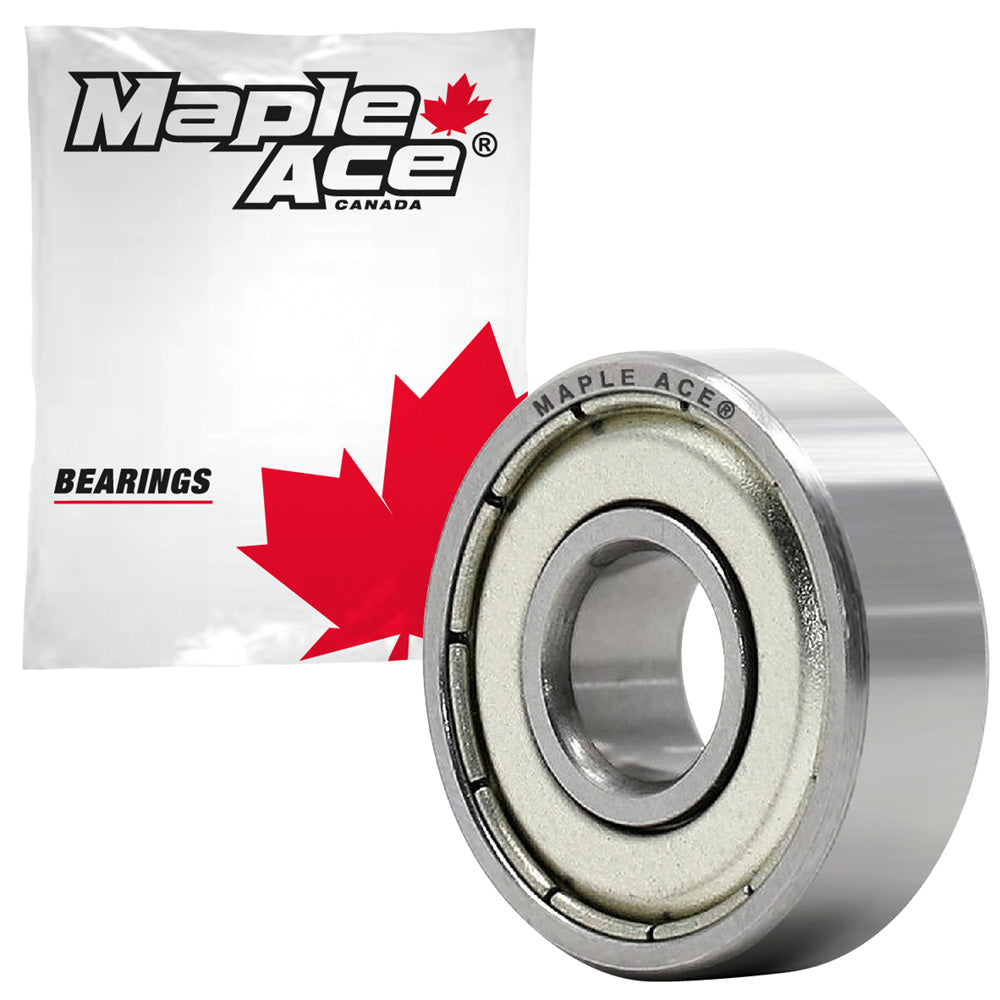

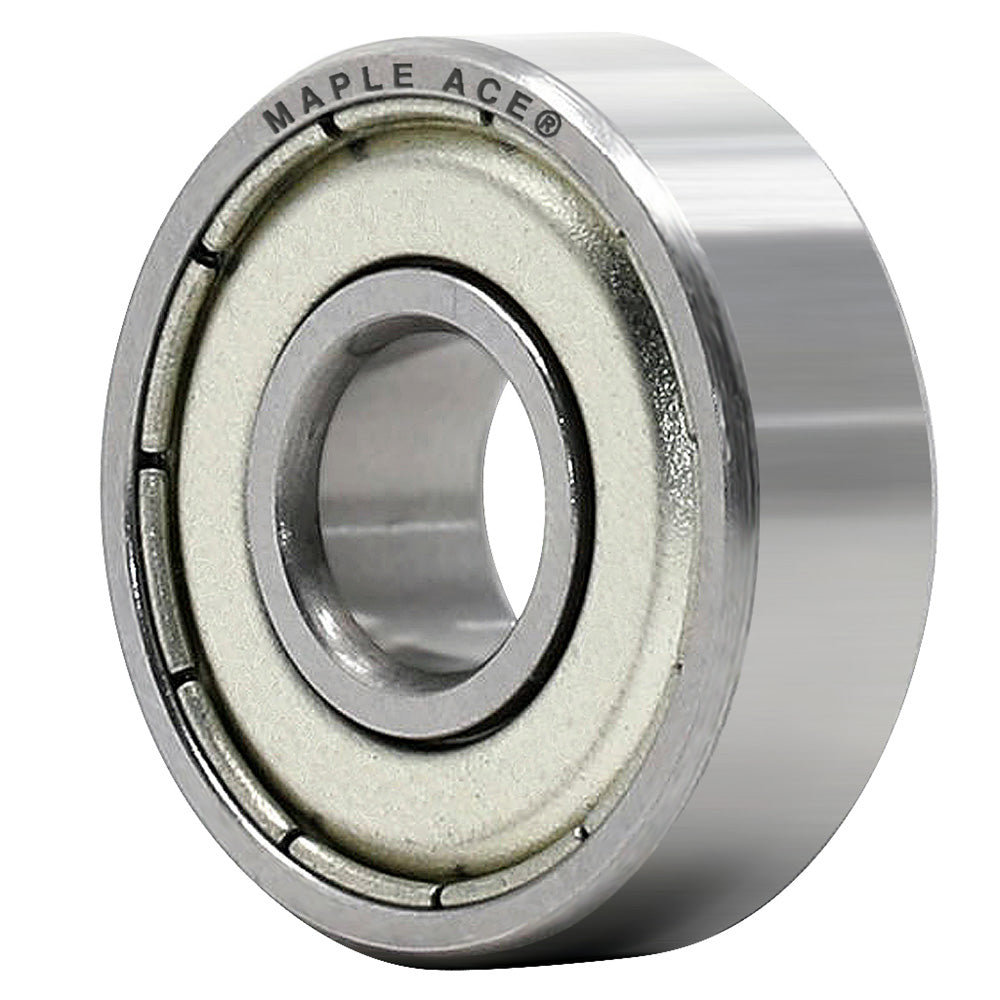

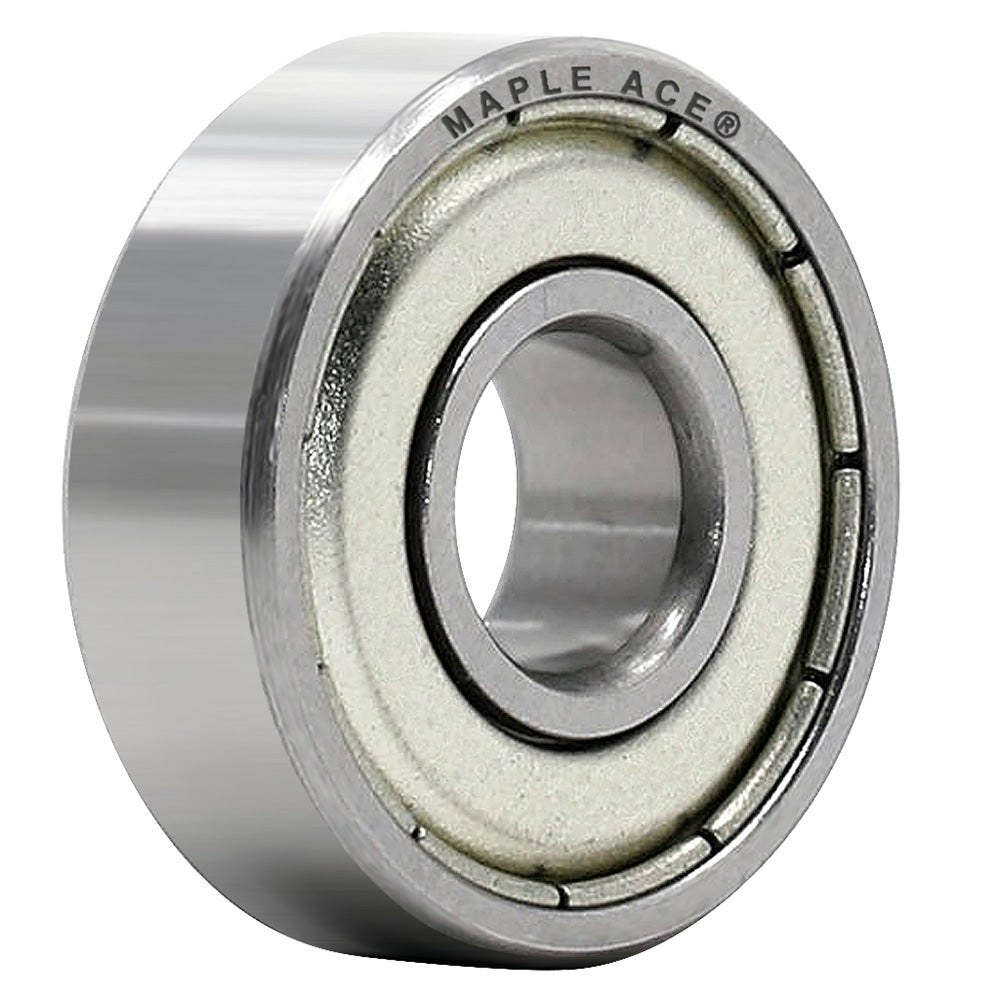

696-ZZ Ball Bearing 6x15x5mm 696 ZZ Metal Shielded
696-ZZ Ball Bearing 6x15x5mm 696 ZZ Metal Shielded
696-ZZ Ball Bearing 6x15x5mm 696 ZZ Metal Shielded

696-ZZ Ball Bearing 6x15x5mm 696 ZZ Metal Shielded

: In stock

: Ball Bearings

: MAPLE ACE

$1.90 CAD

  • 696 ZZ Deep Groove Ball Bearing dimensions: Bore Diameter 6mm, Outside Diameter 15mm, Width 5mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High, and Low-temperature settings.
  • Interchange to 696, 696 Z, 696 ZZ, 696 ZR, 696 ZZR, 696 2ZR, 696 2Z
  • This deep groove ball bearing has a shield on both sides, non-connected to the inner ring, to stop dust from entering. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
  • Application: 3D Printer, Bicycle, Hobby and Recreation Bearing, RC Car, Vacuum, Fishing Reel, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
  • They feature low friction and are optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds
  • Capable of accommodating both radial and axial loads in both directions.
  • Easy to mount, requiring less maintenance compared to other bearing types.
  • The integral sealing system prolongs bearing service life by:
    • Keeping lubricant inside the bearing
    • Preventing contaminants from entering the bearing

Item696-ZZ
Bore Diameter6.00 mm
Outside Diameter15.00 mm
Width, Total5.00 mm
Width, Inner Ring5.00 mm
Width, Outer Ring5.00 mm
Basic Dynamic Load Rating (Cr)0.884 kN
Basic Static Load Rating (C₀r)0.27 kN
Limiting Speed50,000 r/min
Rolling ElementBall
Number of Rows1
Locating Feature (Outer Ring)None
Bore TypeCylindrical
Cage MaterialSheet metal
Radial Internal ClearanceCN
Tolerance ClassP6
Bearing MaterialGCr15
SealingShield on both sides
Sealing TypeNon-contact
LubricationGrease
Relubrication FeatureWithout
Product Weight4 g
FAG 696-2Z
INA 696-2Z
SKF 619/6-2Z

You can use this MINIATURE DEEP GROOVE BALL BEARING as a Replacement Part for:

  • Automotive
  • Turbo-machinery Pumps
  • Industrial
  • Miniature Motor
  • Textile
  • Fuel Control
  • Flow Meter
  • Office equipment
  • Paper-making machine
  • 3D Printer
  • Medical Handpieces & Instruments
  • Surgical Devices
  • Robots, Bicycle
  • Fishing Reel
  • Slip Ring
  • Hobbies
  • RC Car & Truck
  • RC Engine
  • RC Helicopter
  • Slot Car
  • YoYo
  • Fidget Spinner
