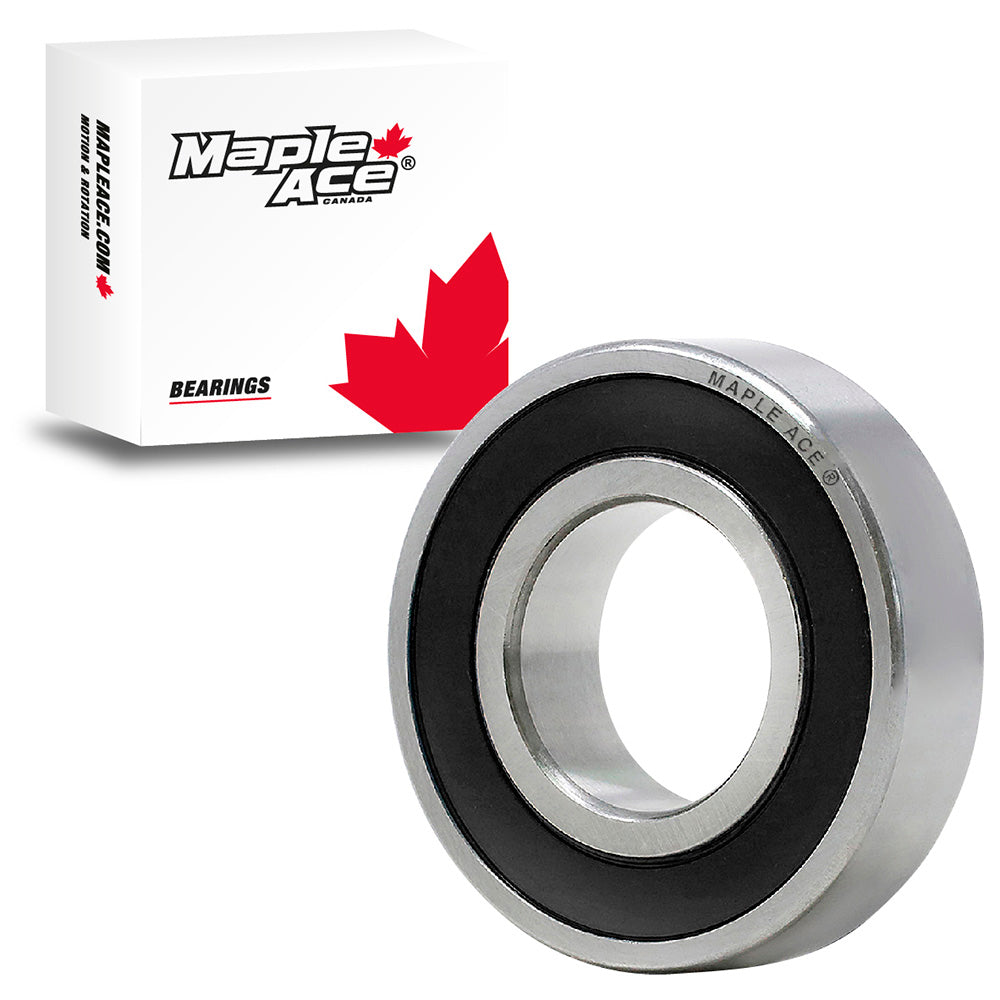

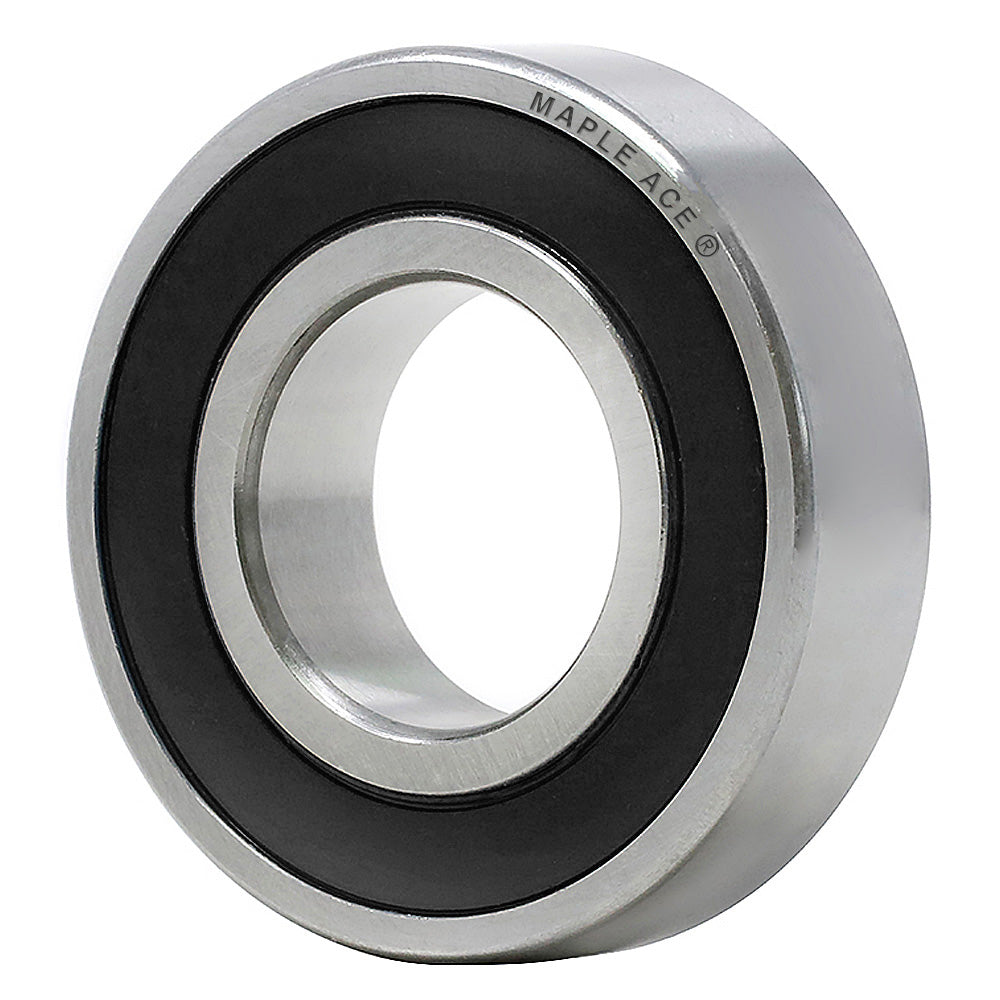

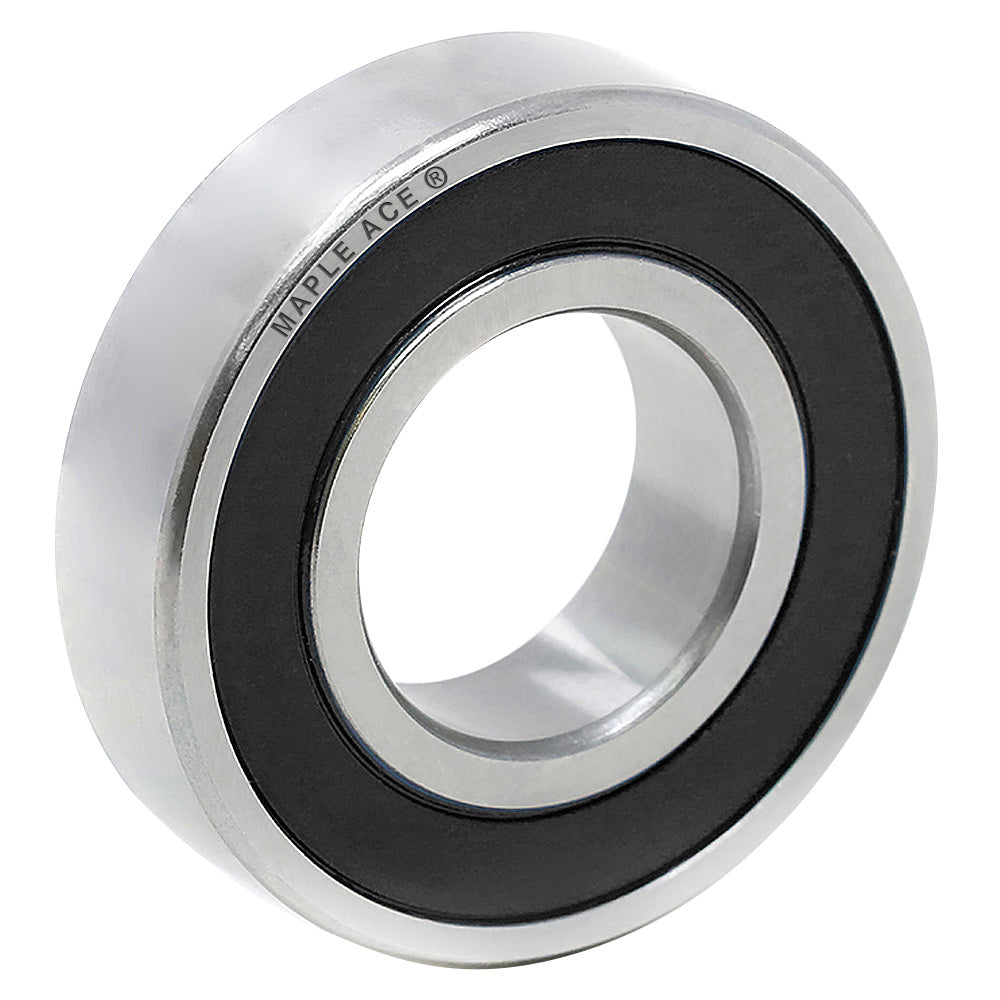

6217-2RS C3 Ball Bearing 85x150x28mm 6217 2RS C3 Rubber Sealed

: In stock

: Ball Bearings

: MAPLE ACE

Regular price $81.95 CAD

  • 6217 2RS C3 Deep Groove Ball Bearing dimensions: Bore Diameter 85mm, Outside Diameter 150mm, Width 28mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High, and Low-temperature settings.
  • Interchange to 6217, 6217 RS, 6217 RSR, 6217 2RSR, 6217 RS1, 6217 2RS1, 6217 2RSJEM, 6217 LU, 6217 LLU, 6217 DU, 6217 DDU, 6217 2NSL, 6217 2NSE, 6217 EE
  • This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to stop dust from entering. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
  • Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
  • They feature low friction and are optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds
  • Capable of accommodating both radial and axial loads in both directions.
  • Easy to mount, requiring less maintenance compared to other bearing types.
  • The integral sealing system prolongs bearing service life by:
    • Keeping lubricant inside the bearing
    • Preventing contaminants from entering the bearing

Item6217-2RS-C3
Bore Diameter85 mm
Outside Diameter150 mm
Width, Total28 mm
Width, Inner Ring28 mm
Width, Outer Ring28 mm
Basic Dynamic Load Rating (Cr)87.1 kN
Basic Static Load Rating (C₀r)64 kN
Limiting Speed2,800 r/min
Rolling ElementBall
Number of Rows1
Locating Feature (Outer Ring)None
Bore TypeCylindrical
Cage MaterialSheet metal
Radial Internal ClearanceC3
Tolerance ClassP6
Bearing MaterialGCr15
SealingSeal on both sides
Sealing TypeContact
LubricationGrease
Relubrication FeatureWithout
Product Weight1.80 kg
FAG6217-2RSR C3
Koyo6217 2RS C3
NACHI6217-2NSE C3
NSK6217 DDU C3
NTN6217 LLU C3
SKF6217-2RS1 C3
SNR6217.EE C3
TIMKEN6217-2RS C3

Application Application

You can use this DEEP GROOVE BALL BEARING as a Replacement Part for:

  • Industrial Applications
  • Furnaces
  • Transmissions
  • Gearboxes
  • Robots
  • Elevator
  • Lifts and Hoists
  • Moulding Machines
  • Polishing Equipment
  • Rolling Mills
  • Aggregate Crushers
  • Agriculture Machines
  • Irrigation Machinery
  • Sewing Machines
  • Mining Construction Equipment
  • Medical Devices
