Description

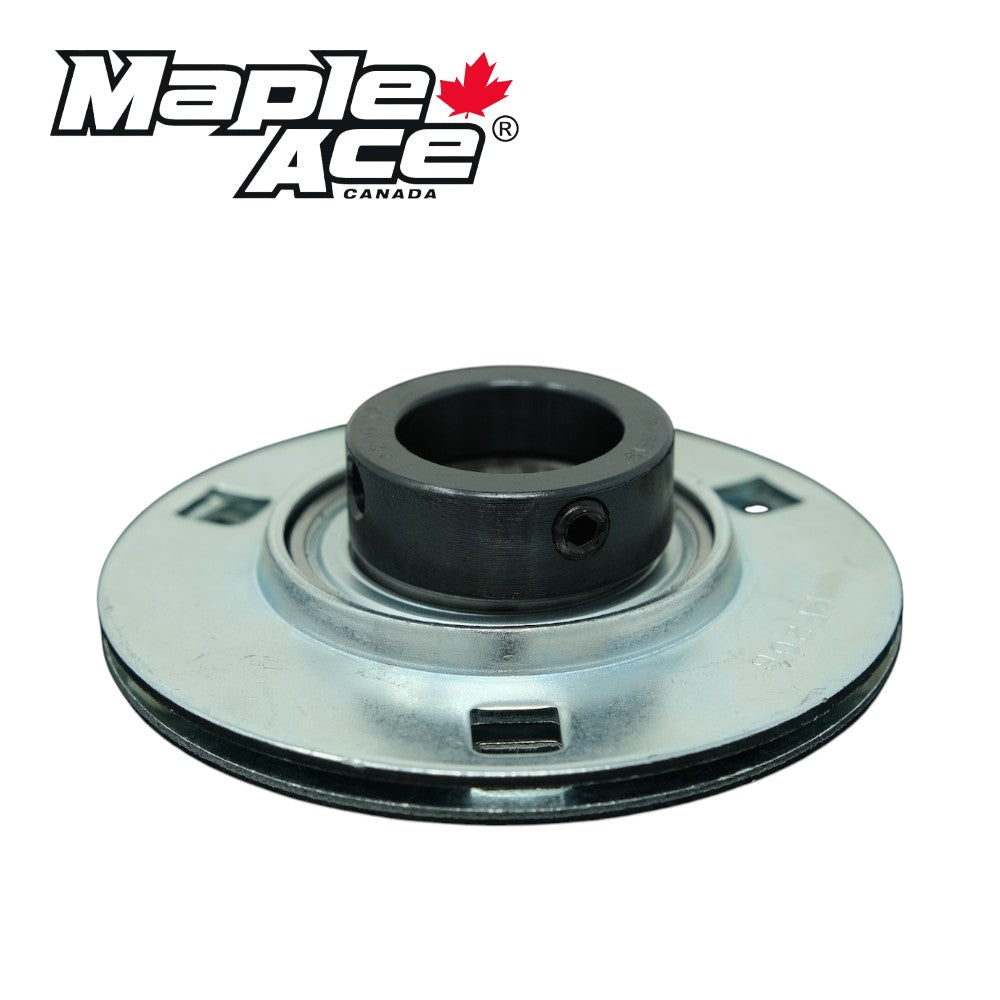

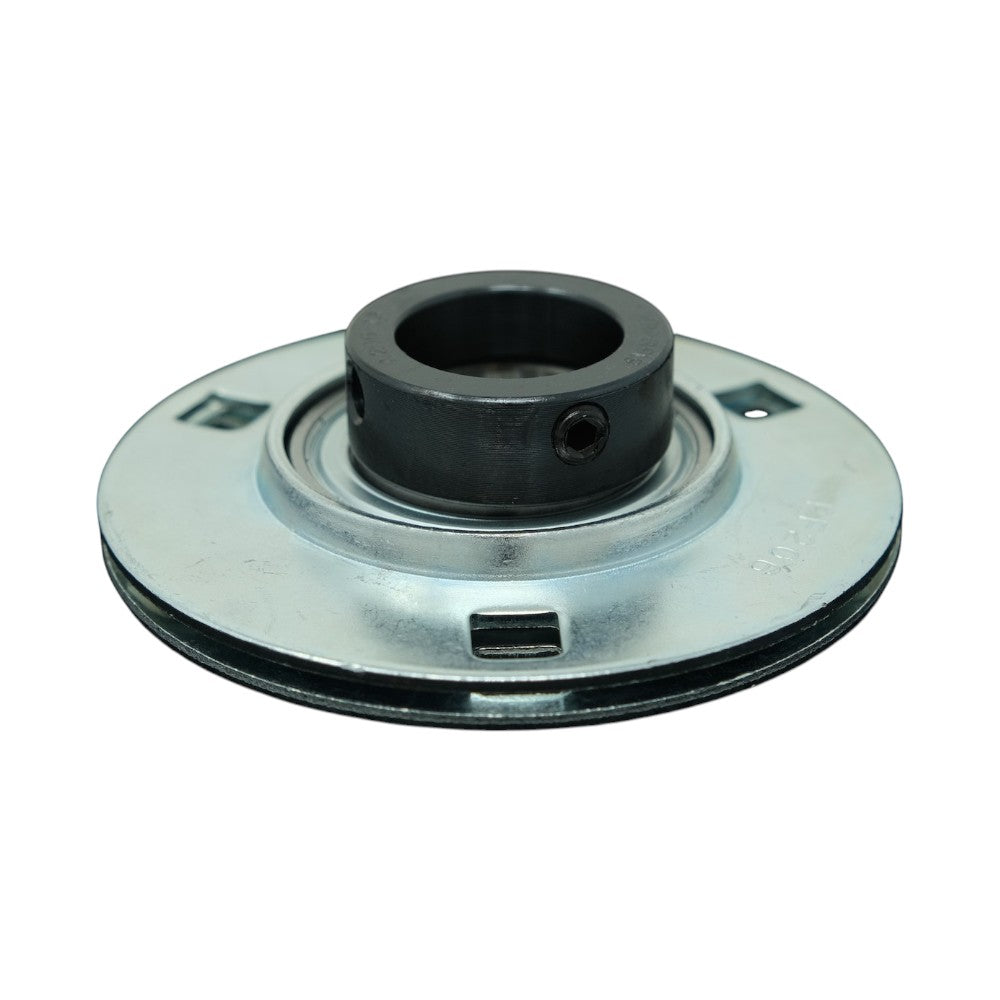

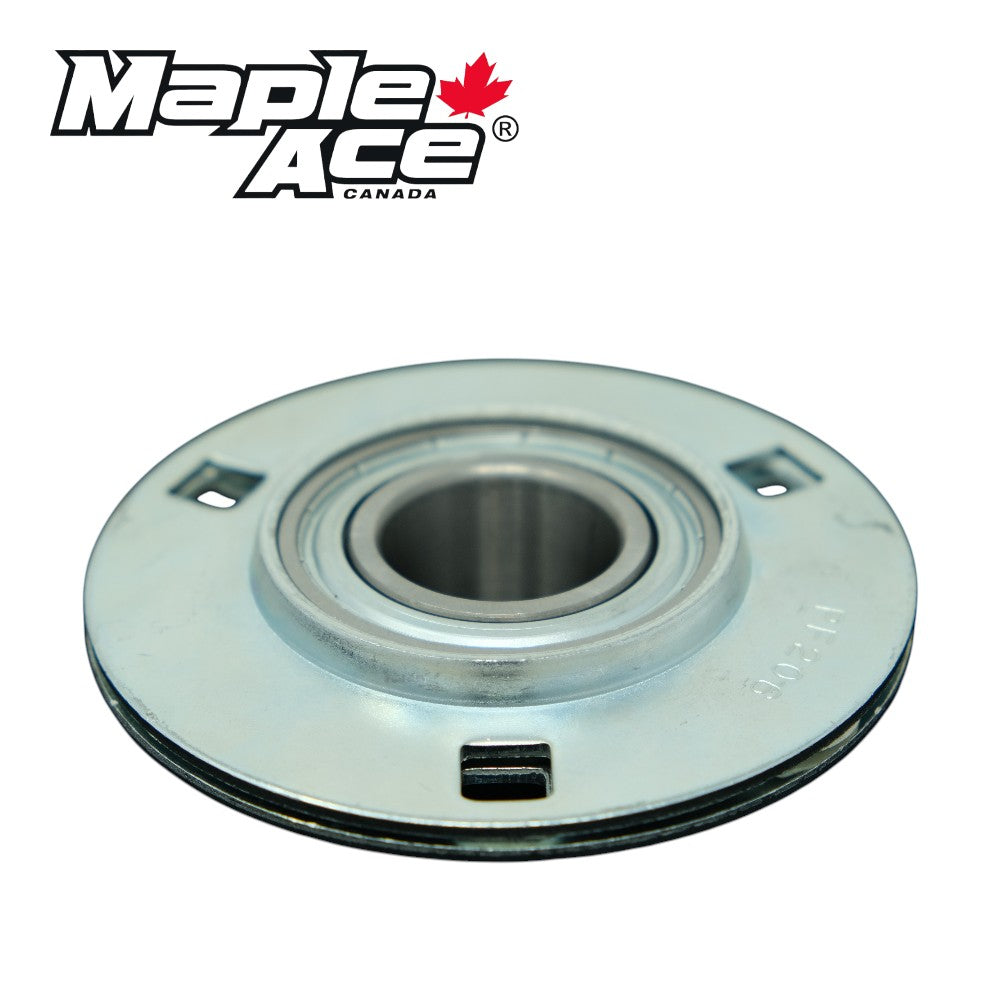

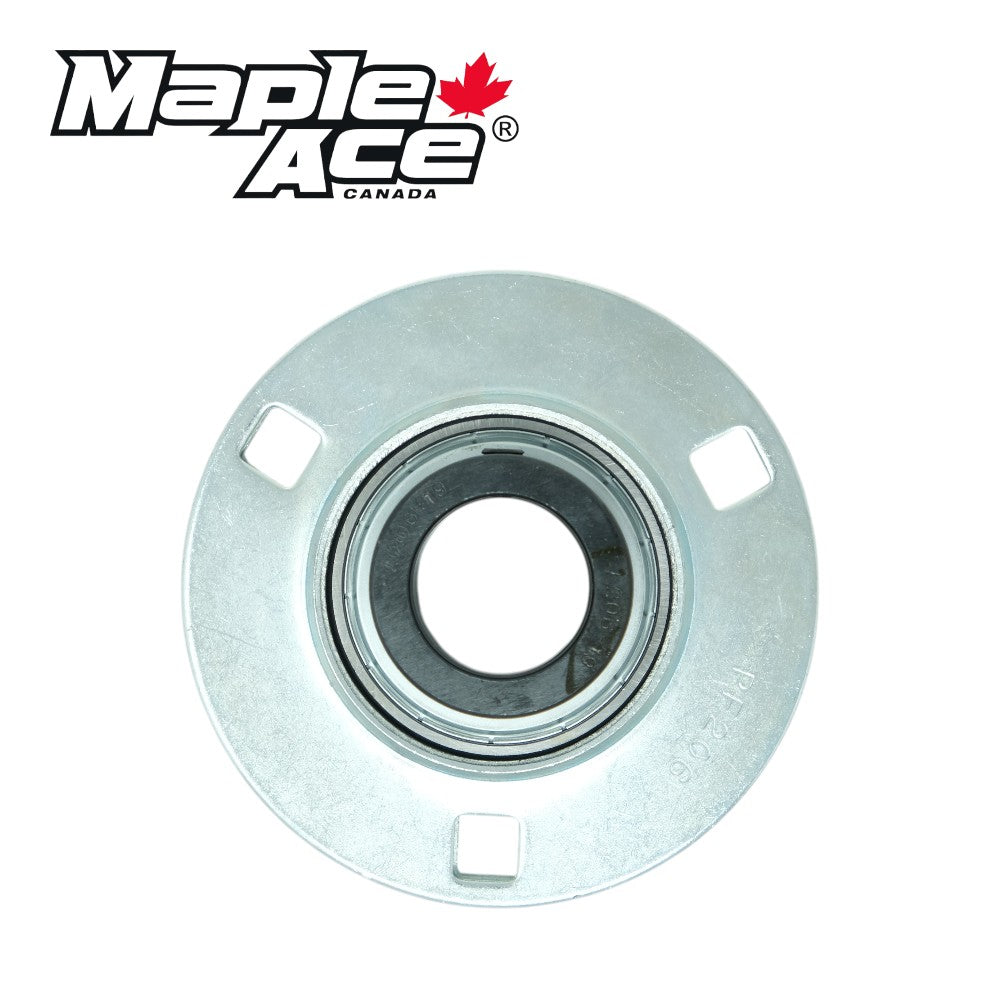

Round flanged pressed-steel housing with insert bearing (eccentric locking collar and narrow inner ring) are lightweight units manufactured from cold-rolled steel and zinc-coated for corrosion resistance. Designed for light-duty applications, these housings provide an economical solution for simple mounting arrangements.

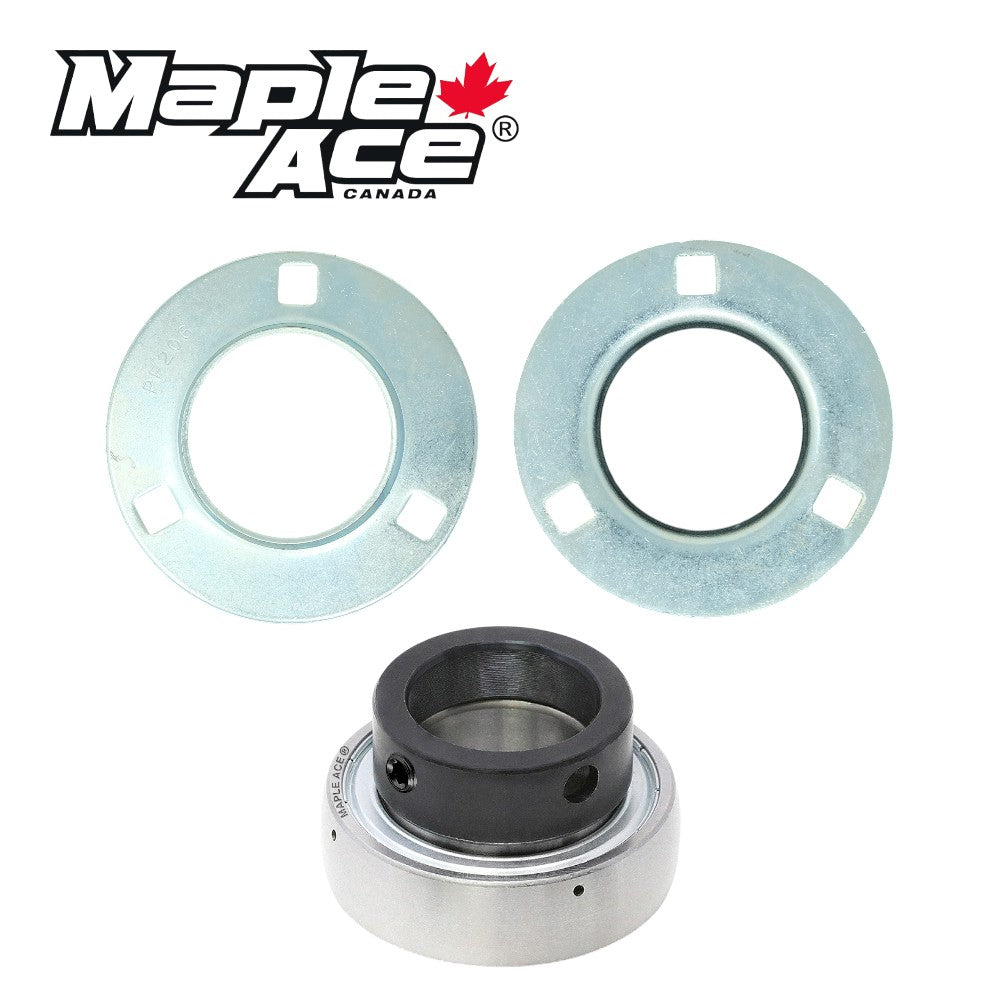

The two-piece construction has no relubrication feature and allows the housing to be purchased separately from the insert bearing, giving flexibility to pair with different bearing types. Easy to mount and versatile in configuration, they are ideal for cost-sensitive applications that do not require heavy load capacity.
- Lightweight pressed-steel construction
- Cost-effective design
- Flexible insert options
- Easy installation and mounting
- Zinc coating for corrosion resistance
| Item | SAPF206 |
| Bearing Number | SA206 |
| Bearing Inner Diameter Metric | 30 mm |
| Bearing Inner Diameter Inch | 1.181 in |
| Outside Diameter Matric | 62.00 mm |
| Outside Diameter Inch | 2.441 in |
| Overall bearing width Matric | 35.70 mm |
| Overall bearing width Inch | 1.406 in |
| Bearing Width Outer Ring Matric | 18 mm |
| Bearing Width Outer Ring Inch | 0.709 inch |
| Overall length Matric | 113 mm |
| Dynamic Load Rating Cr | 19500 N |
| Static Load Rating Cor | 11200 N |
| Limiting Speed | 6300 r/min |
| Clearance | Normal |
| Bearing Sealing type | Contact, standard |
| Lubrication Type | Grease Shell RL2 |
| Lubrication Temperature | -20°C to +160°C |
| Rolling Element Indicator | Ball |
| Bearing Material | Gcr15 |
| Locking Type | Set Screws |
| Set screw Brg. Bore Metric | M8×1 |
| Set screw Brg. Bore Inch | 5/16-24UNF |
| Housing Number | PF206, PF62 |
| Housing type | Flanged |
| Flanged housing type | Round |
| Number of Bolts | 3 |
| Housing Material | Pressed steel |
| Bolt Size Metric | M10 |
| Bolt Size Inch | 3/8 |
| Weight | 0.590 KG |
