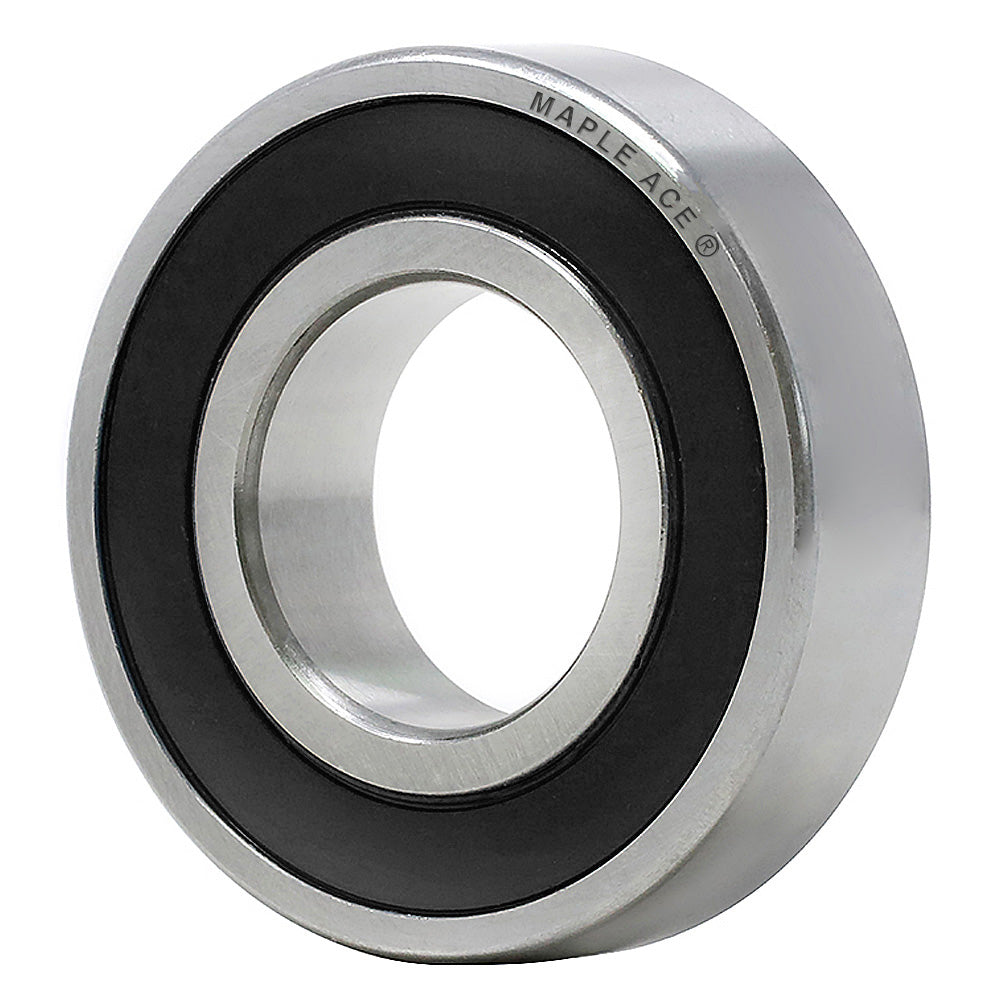

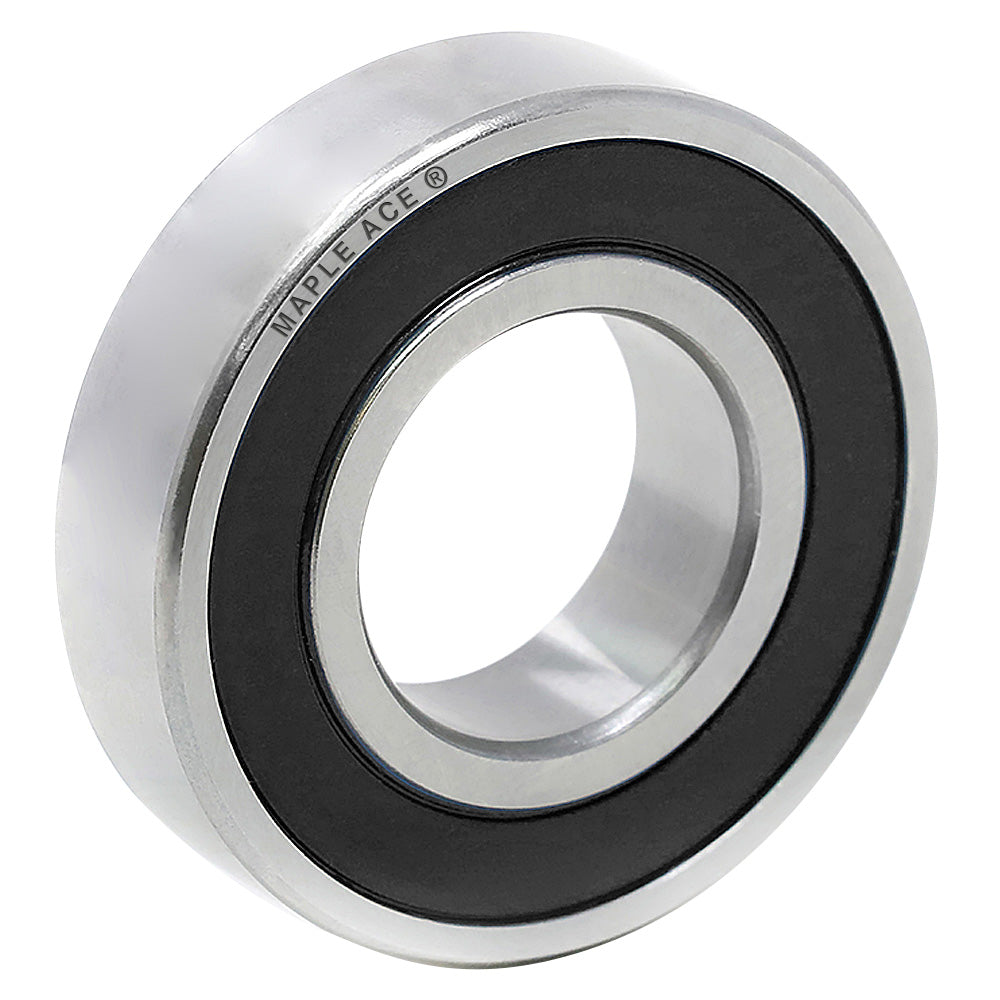

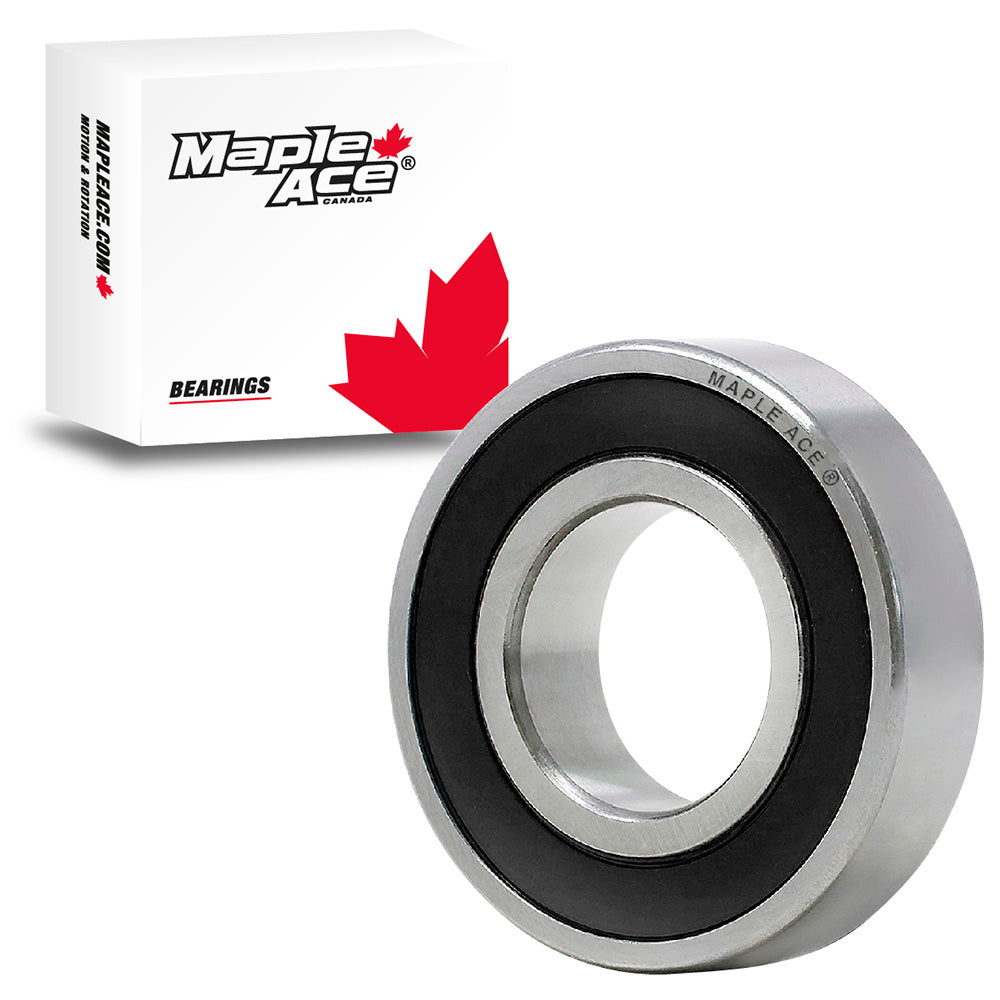

6816-2RS, 61816-2RS Ball Bearing 80x100x10mm 6816 2RS Rubber Sealed

: En stock

: Ball Bearings

: MAPLE ACE

Prix régulier $58.95 CAD

  • 61816 2RS Deep Groove Ball Bearing dimensions: Bore Diameter 80mm, Outside Diameter 100mm, Width 10mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High, and Low-temperature settings.
  • Interchange to 6816, 6816 RS, 61816 RSR, 61816 2RSR, 61816 RS1, 61816 2RS1, 61816 2RSJEM, 6816 LU, 6816 LLU, 6816 DU, 6816 DDU, 6816 2NSL, 6816 2NSE
  • This deep groove ball bearing has a rubber seal on both sides connected to the inner ring to stop dust from entering. If your application requires a ball bearing with one seal or opened without seals, you can easily remove one or both seals.
  • Application: Industrial Applications, Food & Beverage, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Sporting Machines, Medical Devices, Automotive, Agriculture Machines...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Description

  • Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile.
  • They feature low friction and are optimized for:
    • Low noise
    • Low vibration
    • High rotational speeds
  • Capable of accommodating both radial and axial loads in both directions.
  • Easy to mount, requiring less maintenance compared to other bearing types.
  • The integral sealing system prolongs bearing service life by:
    • Keeping lubricant inside the bearing
    • Preventing contaminants from entering the bearing

Item 61816-2RS
Bearing Type Deep groove ball bearing
Bore Diameter 80.00mm
Outside Diameter 100.00mm
Width 10.00mm
Width Inner Ring 10.00mm
Width Outer Ring 10.00mm
Dynamic Load Rating Cr 12700 N
Static Load Rating Cor 11200 N
Limiting Speed 3600 r/min
Clearance CN
Tolerance Classes P6
Cage Metal
Closures Seal on both sides
Lubrication Type Grease Chevron
Lubrication Temperature -30°C to +180°C
Rolling Element Indicator Ball
Material Gcr15
Product Weight 0.160 KG
FAG61816 2RSR
Koyo6816 2RS
NACHI6816 2NSE
NSK6816 DD, 6816 VV
NTN6816 LLU
SKF61816 2RS1
SNR61816 EE
TIMKEN6816 2RS

Application Application

You can use this DEEP GROOVE BALL BEARING as a Replacement Part for:

  • Industrial Applications
  • Furnaces
  • Transmissions
  • Gearboxes
  • Robots
  • Elevator
  • Lifts and Hoists
  • Moulding Machines
  • Polishing Equipment
  • Rolling Mills
  • Aggregate Crushers
  • Agriculture Machines
  • Irrigation Machinery
  • Sewing Machines
  • Mining Construction Equipment
  • Medical Devices
